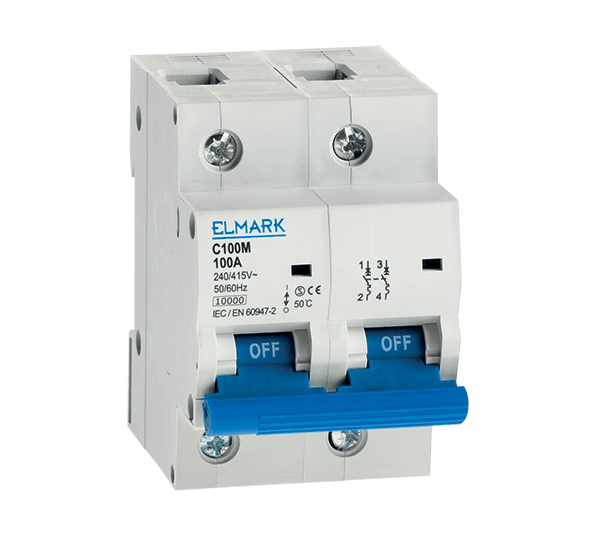

ΜΙΚΡΟΑΥΤΟΜΑΤΗ ΑΣΦΑΛΕΙΑ C100M 10KA 2P 100A ΚΑΜΠΥΛΗ D

Technical characteristics:
- Rated operating voltage: 230/400V; 50/60Hz
- Insulation voltage:≥2000 V
- Rated current: 80-125А
- Breaking capacity: 10 000 А
- Poles: 1; 2; 3; 4
- Tripping curve: C;D
С - the maximum current release breaks between 5 and 10 In; used to protect power supply cables and conventional consumers
D - the maximum current release breaks between 10 and 14 In; used to protect consumers with high starting current (electrical motors, transformers)

- Electrical wear resistance (number of cycles ):≥4000
- Mechanical wear resistance (number of cycles):≥20000
- Limitation class: 3
- IP code: IP>20
- Ambient temperature: -5 to +65°С±2°С

Mounting: Vertically on a DIN rail

Standards: EN60898-1; EN60947-2
