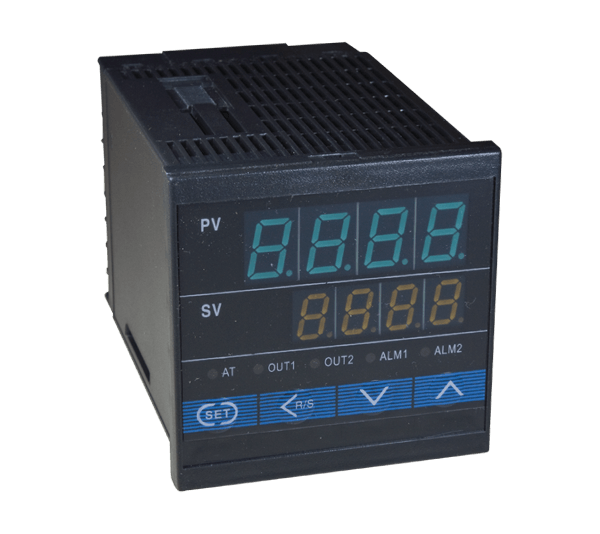

ΨΗΦΙΑΚΟΙ ΡΥΘΜΙΣΤΕΣ ΘΕΡΜΟΚΡΑΣΙΑΣ ΤΥΠΟΥ CD701

Technical characteristics:
- Power supply voltage: 230V,50Hz
- Acceptable deviation of the power supply voltage: 85- 110% Un
- Input signal: thermocouple K,J or thermo resistance Pt 100
- Output: S:SSR
- Emergency output: relay
- Electrical wear resistance: 1 000 000 cycles
- Indication:
   = green LED - indicates the measured (current) temperature
   = red LED - indicates the set temperature
- Insulation resistance: 20 mΩ min (500V)
- Surge voltage wearv resistance: 2000V, 50Hz
- Operating temperature: -5 - + 65°С
- Humidity: 35 - 85%RH

Mounting: On the front panel

Standards: EN61010-1
