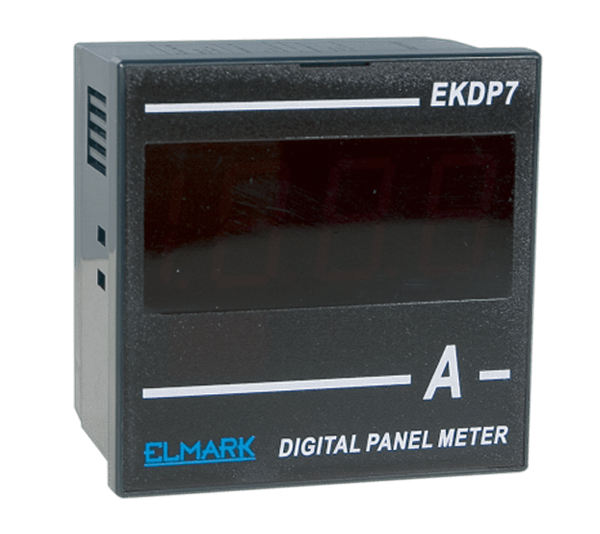

ΨΗΦΙΑΚΟ ΒΟΛΤΟΜΕΤΡΟ AC ΤΥΠΟΥ EKDP7-AV

Technical characteristics:
- Power supply voltage: 100-240V,50Hz
- Inlet signal:
   = Operating as voltmeter: 2-700V (the range is adjusted from inside)
   = Operaing as ampermeter: 5-2000A (the range is adjusted from inside)
Note: For high current ranges a current measurement transformer should be
used for alternating current device and a measurement shunt for direct current.
- Consumption: <5VА
- Impulse voltage withstand: 4000V,50Hz (1 min)
- Operating temperature: -5° to 65°С
- Humidity: 35-85% RH
- Accuracy: 0.5% from the whole scale
- Display: LCD
- Weight: 130g

Mounting: On the front panel

Standard: EN61010-1
